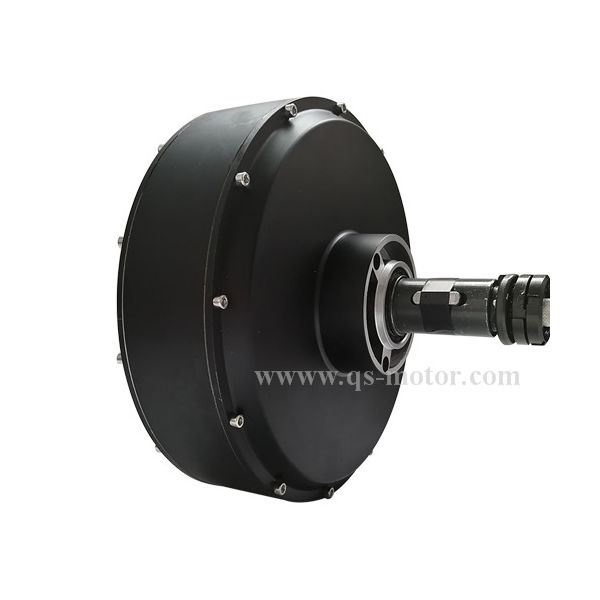

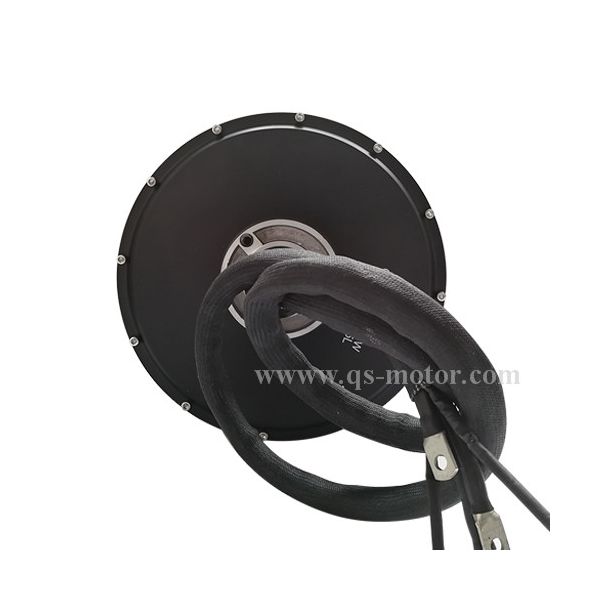

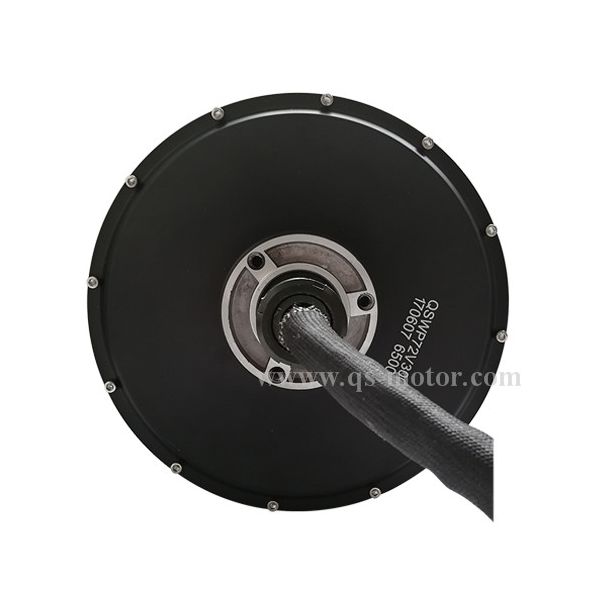

260Model 3000W Single Shaft Electric Car Hub Motor 40H V1 Type

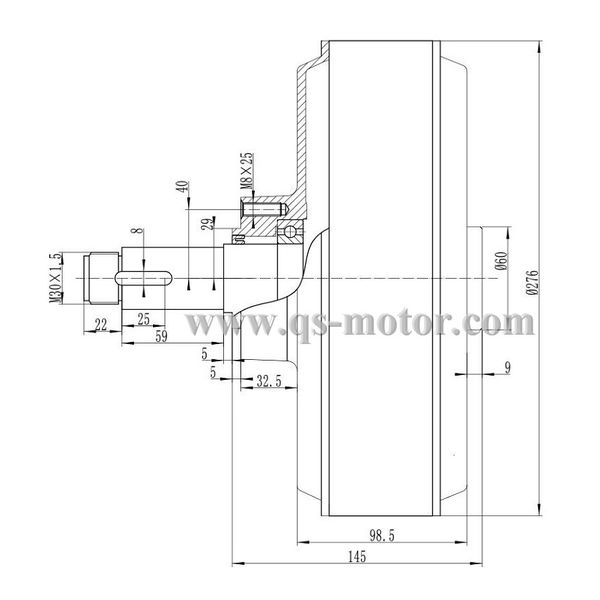

260 Single Shaft Electric Car Hub Motor(40H) 3000W V1 Type   260Model Electric Car Hub Motor is NEW developed for Electric Car or Electric Motorbike, the rated power can be made at 1500W,2000W,3000W or 5000W. Version 1 and Version 3 can be optional   Motor Specification:   Motor Type: BLDC Hub Motor with Permanent Magnets Motor design: 260 Single shaft out Bolts Pattern: 4 x 100MM Magnet: 40H Straight Pole Pairs: 23 Pairs Rated Power: 3000W Peak Power:4500W Rated Voltage: 72V( 60V-96V Can be optional) Max No-load RPM: 1000RPM Max Torque: 170N.M Max Efficiency: 87% Brake type: Disc brake Winding Core material: Steel Cross Section of Phase wire: 10mm2 Hall sensor phasing angle: 120 degree Temperature Sensor: Optional Working Temperature: 70 degree, Peak 120 degree Waterproof Grade: IP54 W./ G..W. : 18kgs / 20kgs Package Size: 44*43*41CM
