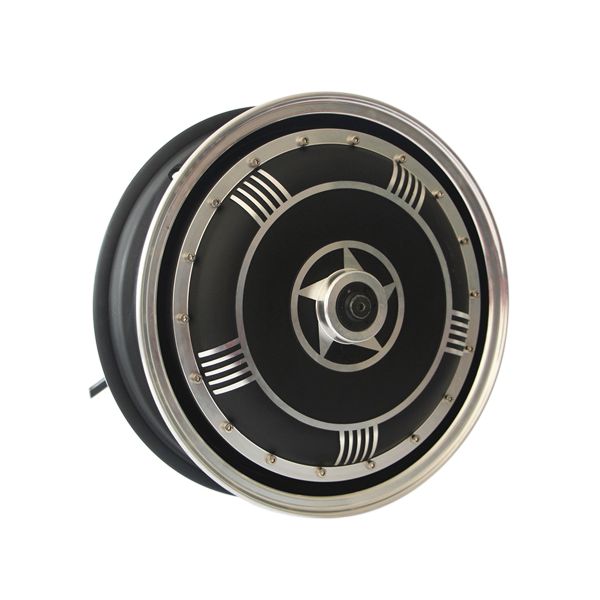

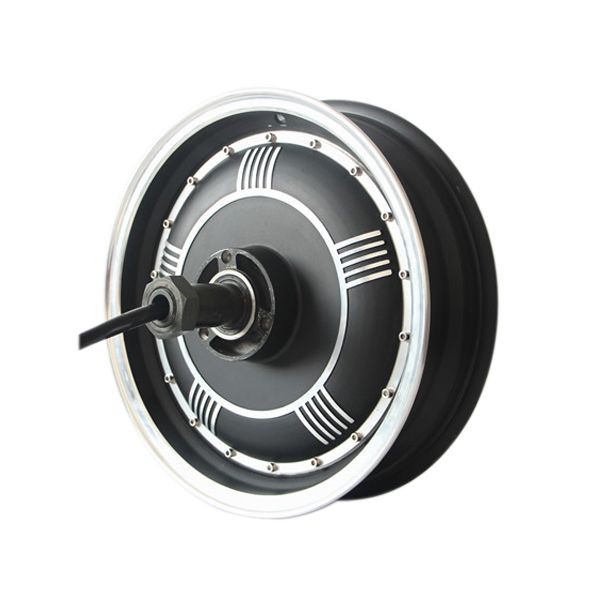

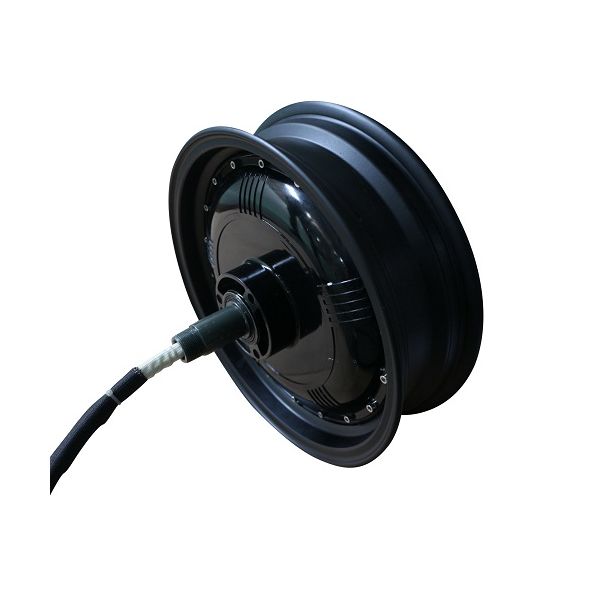

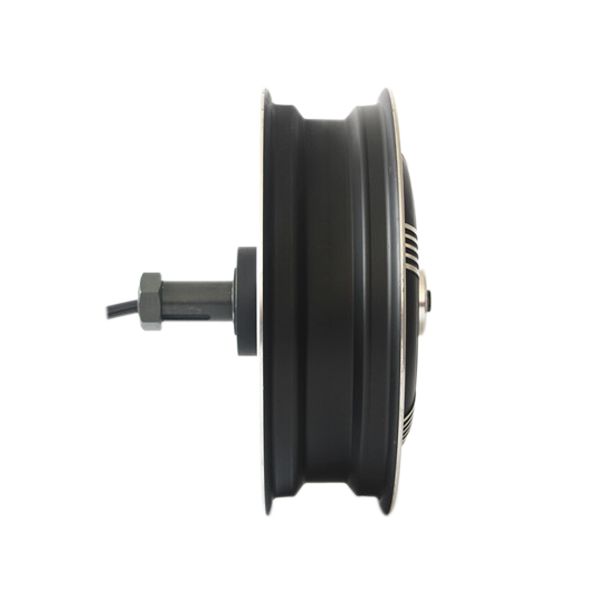

13inch 273Model 3000W Single Shaft QS Hub Motor V2 Type

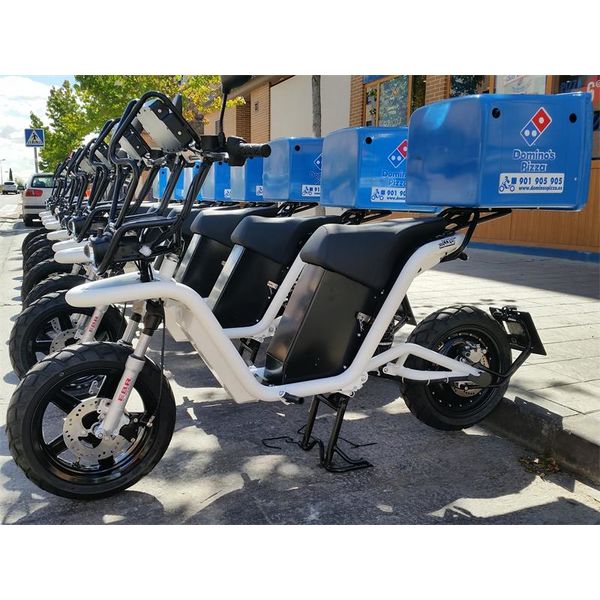

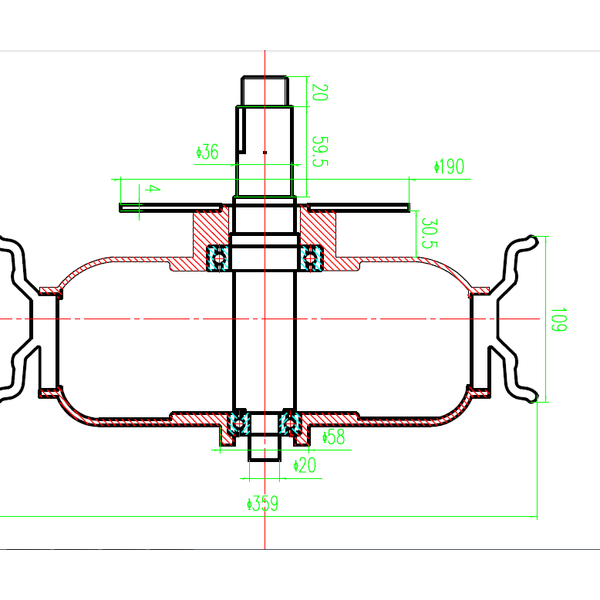

13inch Single shaft In-Wheel Hub Motor(40H) 3000W V2 Type   13inch Single Shaft Hub Motor specially designed for electric scooters and small Electric vehicles with single swing arm installation, the rated power can be made 3kw,4kw,5kw,6kw,7kw or 8kw. Max speed can be customized from 30-100KMPH.   Motor Specification:   Motor Type: BLDC Hub Motor with Permanent Magnets Motor design: Single axle out with 13inch Aluminium rim Rim size:3.5×13 Matching Tire: 130/60-13 Magnet Height: 40MM of Pole Pairs: 28 pairs Rated Power: 3000W Peak Power:5200W Rated Voltage: 72V( 48-96V Can be optional) Speed: 65km/h (30-65km/h can be customized) Max No-load RPM:900RPM Max Torque: 185N.M Max Efficiency: 88% Continious current:50A Max current:100A Brake type: Disc brake Winding Core material: Aluminium Cross Section of Phase wire: 10 mm2 Hall sensor phasing angle: 120 degree Temperature Sensor: Optional Working Temperature: 70 degree, Peak 120 degree Waterproof Grade: IP54 W./ G..W. : 21kgs / 22kgs Package Size: 44*43*34CM   Motor Drawing as follows,   a   Application Scooter
