QS273 8000W 72V V3 16inch Electric motorcycle Motor Conversion Kits with Kelly Sine wave controller

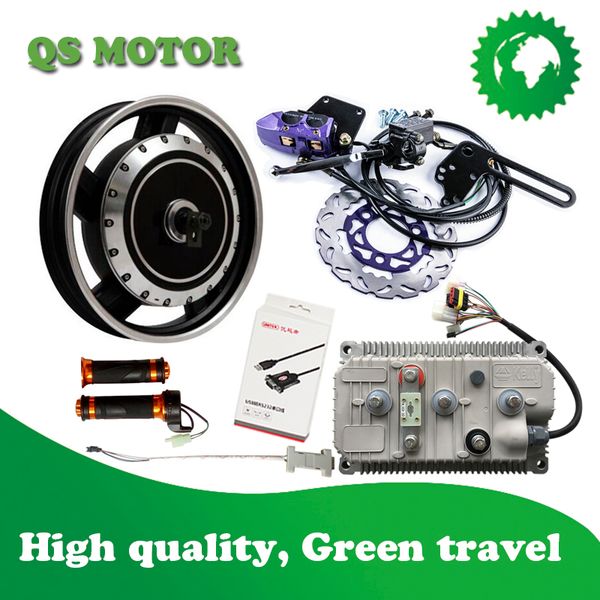

16inch 8000W 72V Electric Motorcycle Conversion Kits   The parts list as follows,   1pc x QS 16inch 8000W V3 Hub Motor ​1set x 220mm Disc brake system with caliper 1pc x Twist Hall Throttle 1pc x Kelly Controller KLS7275H 1pc x Kelly Controller wiring 1pc x Kelly Controller USB cable       16inch 273 E-Scooter In-Wheel Hub Motor(50H) 8000W V3 Type   16inch Hub Motor specially designed for electric motorcycle, the rated power can be made 2kw,3kw,4kw,5kw,6kw,7kw or 8kw. Max speed can be customized from 30-120KMPH.   Motor Specification:   1.    Motor Type: BLDC Hub Motor with Permanent Magnets 2.    Motor design: Double axle out with 17inch Aluminium rim 3.    Rim size:3.0×16 4.    Matching Tire: 110/90-16 5.    Magnet Height: 50MM 6.    Number of Pole Pairs: 16 pairs(32pcs Curved Magnets) 7.    Rated Power: 8000W V3 8.    Max Power:11250W(Peak 16000W) 9.    Rated Voltage: 72V( 72-144V Can be optional) 10.  Speed: 115km/h (30-120km/h can be customized) 11.  Max No-load RPM:1160RPM 12.  Max Torque: 200N.M 13.  Max Efficiency: 90% 14.  Continious current:130A 15.  Max current:190A ,Peak 260A 16.  Brake type: Disc brake 17.  Rear Fork width for installation: 200mm 18.  Winding Core material: Aluminium 19.  Cross Section of Phase wire: 16 mm2 20.  Hall sensor phasing angle: 120 degree 21.  Temperature Sensor: Optional 22.  Max. Working Temperature: 70 degree, Peak 120 degree 23.  Waterproof Grade: IP54 24.  Net Weight: 25KGS 25.  Package Size: 58*58*40CM     Motor Pictures: Please choose what side cover design you need,or it will be randam delivery!       Motor drawing:       Motor cable:         Kelly Sinusoidal Wave Controller KLS7275H   SINUSOIDAL WAVE BLDC MOTOR CONTROLL KLS7275H,24V-72V,500A,SEALED IP67 Suitable Motor power: 6000W-8000W Battery voltage range: 18V-90V Water proof level: IP67
