QS260 12inch 5000W Hub Motor For Electric Scooter Conversion Kits

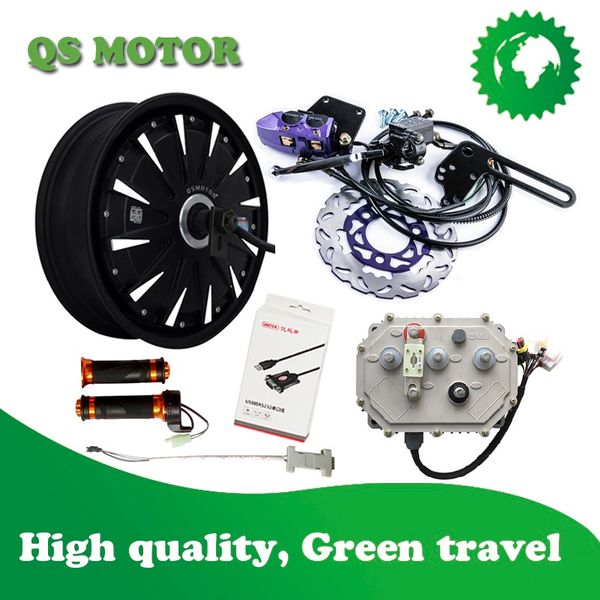

The conversion kits included the part as follows,   1nos. QS260 12inch 5000W Hub Motor V3 Type 1nos. Kelly Sine Wave Controller KLS7250H 1nos. Disc brake System 1nos. Twist throttle   1. QS 260 12inch E-Scooter Hub Motor(45H) 5000W V3 Type   Motor Specification: 1.    Motor Type: BLDC Hub Motor with Permanent Magnets 2.   Motor design: Double axle out with 12inch rim 3.    Rim size:3.5×12 4.    Matching Tire: 120/70-12 5.    Magnet Height: 45MM 6.    Pole Pairs: 16 pairs 7.    Rated Power: 5000W 8.    Peak Power: 10000W 9.    Rated Voltage: 72V( 60V-96V Can be optional) 10.  Speed: 85km/h (30-100km/h can be customized) 11.  Max No-load RPM: 1320RPM 12.  Max Torque: 230N.M 13.  Max Efficiency: 89% 14.  Continious current:77A at 72V 15.  Max current:100A at 72V 16.  Brake type: Disc brake 17.  Rear Fork width for installation: 200mm 18.  Winding Core material: Aluimium 19.  Cross Section of Phase wire: 16mm2 20.  Hall sensor phasing angle: 120 degree 21.  Temperature Sensor: Optional 22.  Max. Working Temperature: 70 degree, Peak 120 degree 23.  Waterproof Grade: IP54 24.  Color: Black 25.  N.W./ G..W. : 17kgs / 18kgs 26.  Package Size: 44*43*34CM 2. Controller– Kelly Controller KLS7250H The details specification can be found in the Controller series   3. Twist Hall Throttle Hall 0-5V Twist Grip for normal electric bike or electric scooter Wires instuction: RED to +5V BLACK to GND WHITE to SIGNAL WIRE 4. Disc Brake System This is complete Disc brake system for Electric scooter or Electric motorcycle with rear Wheel Hub Motor.   The system including the Brake disc, Brake handle, Caliper and Oil pipe and cables. The color of the caliper will be delivery in random,sometimes Purple or Orange!   Some details of the disc brake as follows,   Disc Dia.: 180MM Disc thickness: 3MM Oil pipe length:2.2M Oil pipe Dia.: 7MM Electric wire Length:40CM
