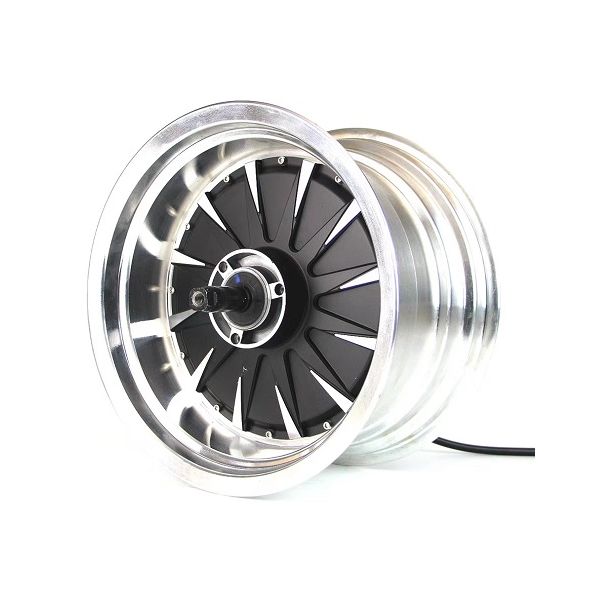

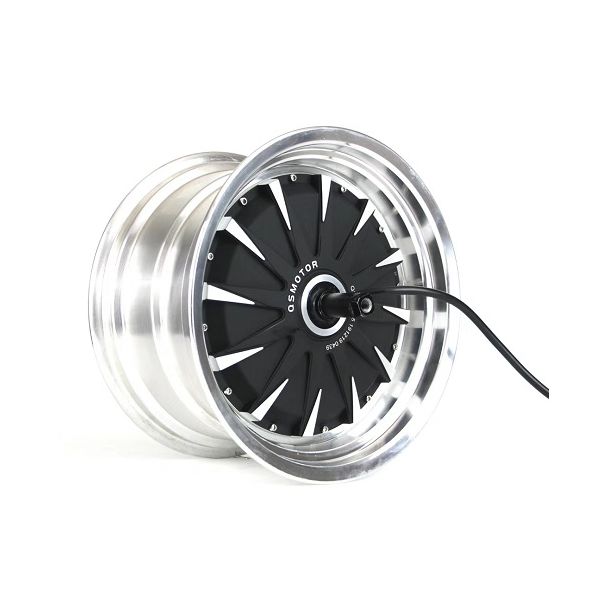

3000W Halley scooter Hub Motor
QS260 7.5”x12inch E-Scooter Hub Motor(40H) 3000W V1 Type Motor Specification: Motor Type: BLDC Hub Motor with Permanent Magnets Motor design: Double axle out with 12inch rim Rim size:7.5×12 Matching Tire: / Magnet Height: 40MM of Pole Pairs: 23 pairs Rated Power: 3000W Max Power: 4500W Rated Voltage: 72V( 60V-96V Can be optional) Speed: 70km/h (30-80km/h can be customized) Max No-load RPM: 1000RPM Max Torque: 170N.M Max Efficiency: 86% Continious current:46A Max current:80A Brake type: Disc brake Rear Fork width for installation: 200mm Cross Section of Phase wire: 10mm2 Hall sensor phasing angle: 120 degree Temperature Sensor: Optional Working Temperature: 70 degree, Peak 120 degree Waterproof Grade: IP54 Color: Black W./ G..W. : 21kgs / 22kgs Package Size: 44*43*41CM
