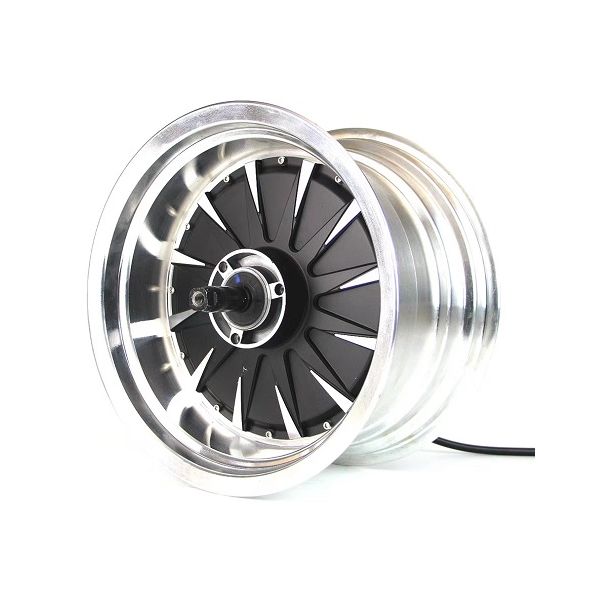

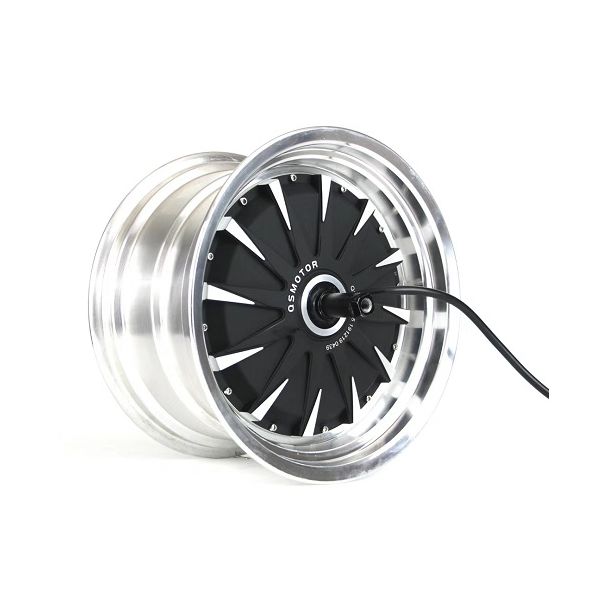

2000W Halley scooter Hub Motor
QS260 7.5”x12inch E-Scooter Hub Motor(35H) 2000W Motor Specification: Motor Type: BLDC Hub Motor with Permanent Magnet Motor design: Double axle out with 13inch rim Rim size:7.5×12 Matching Tire:/ Magnet:35H of Pole Pairs: 23 pairs Rated Power: 2000W Max Power:3000W Rated Voltage: 48V( 60V/72V Can be optional) Speed: 45km/h (30-65km/h can be customized) Max No-load RPM: 750RPM Max Torque: 160N.M Max Efficiency: 86% Continious current:45A Max current:60A Brake type: Disc brake Rear Fork width for installation: 200mm Winding Core material: Iron Cross Section of Phase wire: 8 mm2 Hall sensor phasing angle: 120 degree Temperature Sensor: Optional Working Temperature: 70 degree, Peak 120 degree Waterproof Grade: IP54 W./ G..W. : 21kgs / 22kgs Package Size: 44*43*41CM
