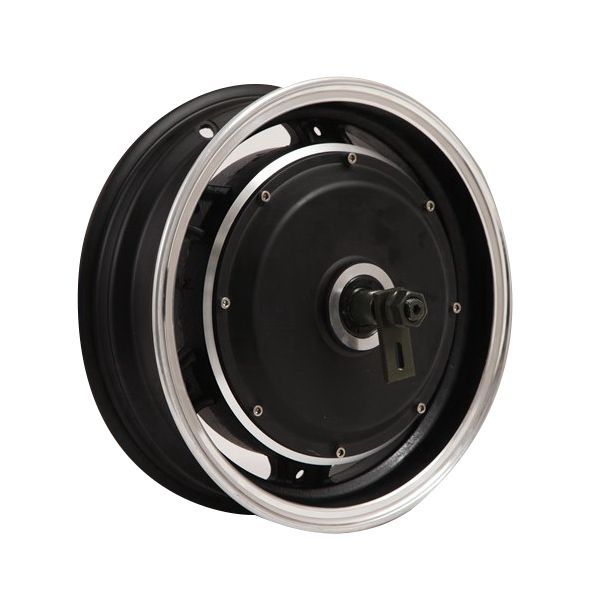

12inch 205 model 1000W V1 Hub Motor with wide rim

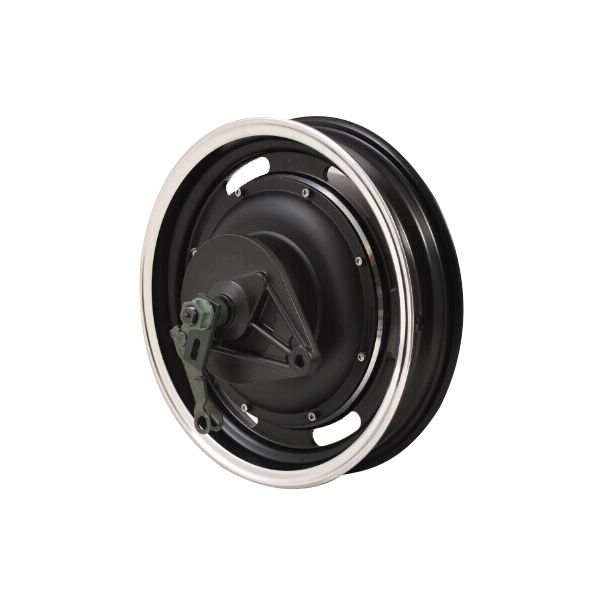

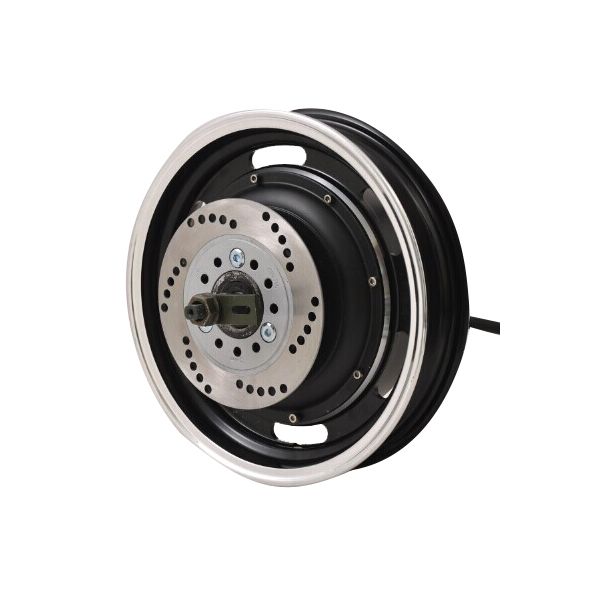

  12inch 205 E-Scooter In-Wheel Hub Motor(40H) 1000W V1 Type   12inch 1000W Hub Motor specially designed for electric scooters, drum brake or disc brake type can be optional, speed can be customized from 25-45KMPH.  Motor Specification:   Motor Type: BLDC Hub Motor with Permanent Magnet Motor design: Double axle out with 12inch Aluminium rim Rim size:3.5×12,2.15×12 Matching Tire: 120/70-12,90/90-12 Magnet Height: 40MM of Pole Pairs: 23 paris Rated Power: 1000W Max Power: 1600W Rated Voltage: 48V( 60V/72V Can be optional) Speed: 50km/h (30-50km/h can be customized) Max No-load RPM: 660RPM Max Torque: 98N.M Max Efficiency: 86% Continious current:23A Max current:45A Brake type: Disc brake or Brum brake(Optional) Rear Fork width for installation: 200mm Winding Core material: IRON Cross Section of Phase wire: 6 mm2 Hall sensor phasing angle: 120 degree Temperature Sensor: Optional Working Temperature: 70 degree, Peak 120 degree Waterproof Grade: IP54 Color: Black or Silver W./ G..W. : 15kgs / 16kgs Package Size: 44*43*34CM
