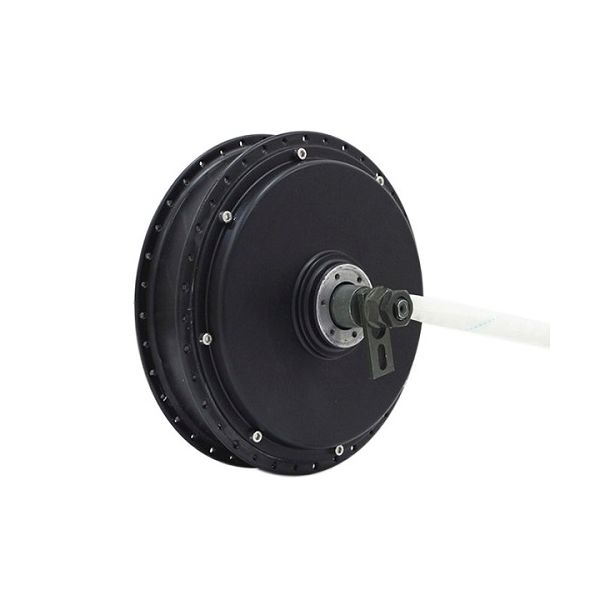

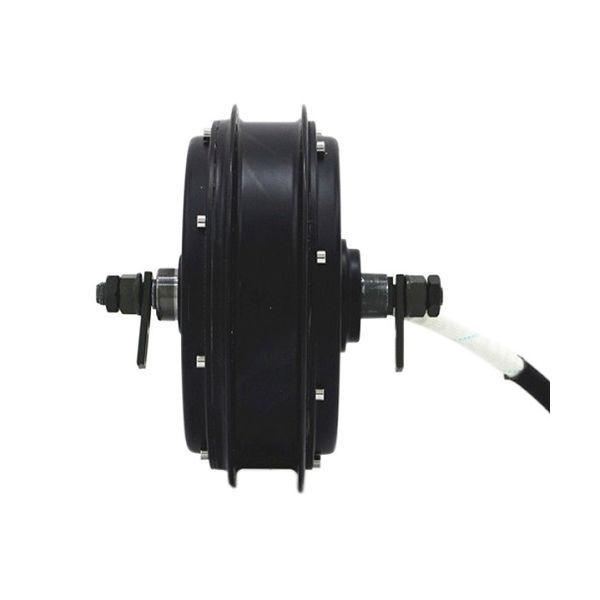

QS205 3000W 50H V2 Electric Bike Spoke Hub Motor with drop-out 150mm

The E-bike spoke hub motor specially designed for high power electric bike or bicycle, rated power can be customized 2000Wor 3000W, Max power can reach 6000W!!! Max speed 45-90km/h,and the motor installation width for the rear fork is 150mm,and can be attached the E-bike Sprocket and Brake disc!   NEW 205 Spoke Hub Motor(50H) 3000W V2 For Electric Bicycle   Motor Specification: Motor Type: BLDC Hub Motor with Permanent Magnet Motor design: Double axle out Spoke hole: 3.4mm x 36pcs Matching Rim:16inch-26inch Magnet Height: 50MM Pole Pairs: 23 pairs Rated Power: 3000W Max. Power: 6000W Rated Voltage: 72V( 48-96V Can be optional) Speed: 70km/h (30-90km/h can be customized with 24inch wheel) Max No-load RPM: 1000RPM Max Torque: 150N.M Max Efficiency: 87% Continious current:45A Max current:80A (Peak 100A in short time) Brake type: Disc brake Rear Fork width for installation: 150mm Winding Core material: Aluminium Cross Section of Phase wire: 10 mm2 Hall sensor phasing angle: 120 degree Temperature Sensor: Optional Working Temperature: 70 degree, Peak 120 degree Waterproof Grade: IP54 Color: Black W./ G..W. : 14kgs / 15kgs Package Size: 34*34*33CM
