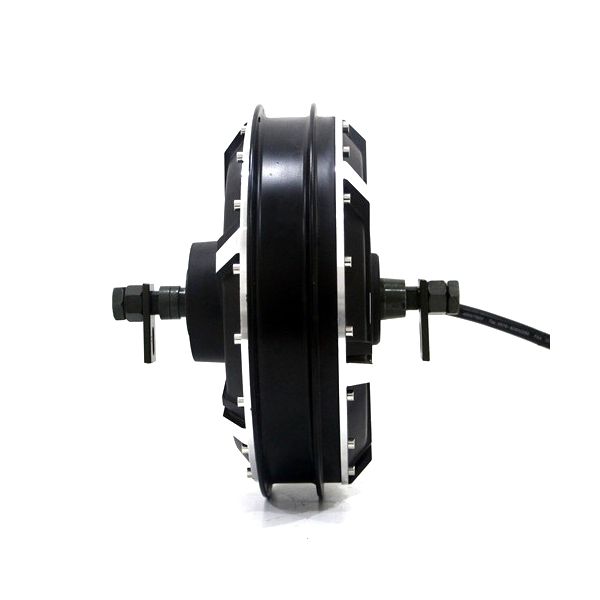

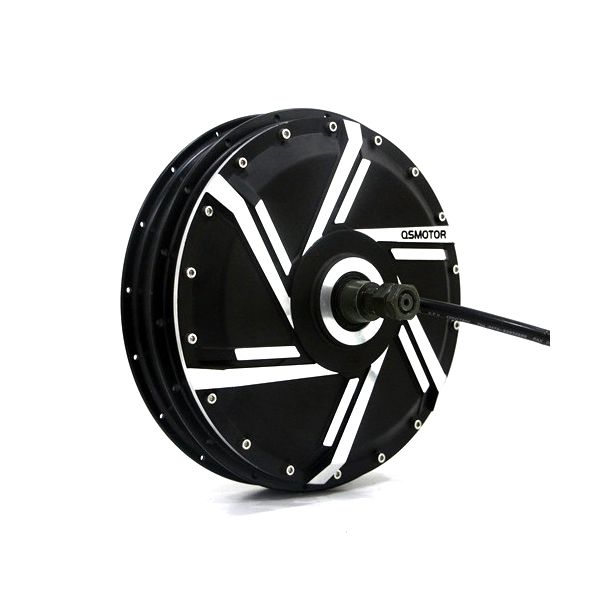

273 Spoke Hub Motor(50H)7000W V2 Type 273 Spoke Hub Motor Designed for electric motorcycle, the rated power can be made,5kw,6kw,7kw or 8kw. Max speed can be customized from 80-120KMPH. Motor Specification: Motor Type: BLDC Hub Motor with Permanent Magnets Motor design: Spoke Motor with Double axle out Spoke Hole: 36pcs*4.2mm Matching Wheel: 17inch-19inch spoke wheel Magnet Height: 50MM of Pole Pairs: 28 pairs Rated Power: 7000W Max Power:8600W(Peak 14000W) Rated Voltage: 72V( 72-144V Can be optional) Speed: 115km/h (30-115km/h can be customized) Max No-load RPM:1440RPM Max Torque: 200N.M Max Efficiency: 86% Continious current:114A Max current:140A ,Peak 240A Brake type: Disc brake Rear Fork width for installation: 200mm Winding Core material: Aluminium Cross Section of Phase wire: 16 mm2 Hall sensor phasing angle: 120 degree Temperature Sensor: Optional Working Temperature: 70 degree, Peak 120 degree Waterproof Grade: IP54 W./ G..W. : 22kgs / 23kgs Package Size: 44*43*34CM
