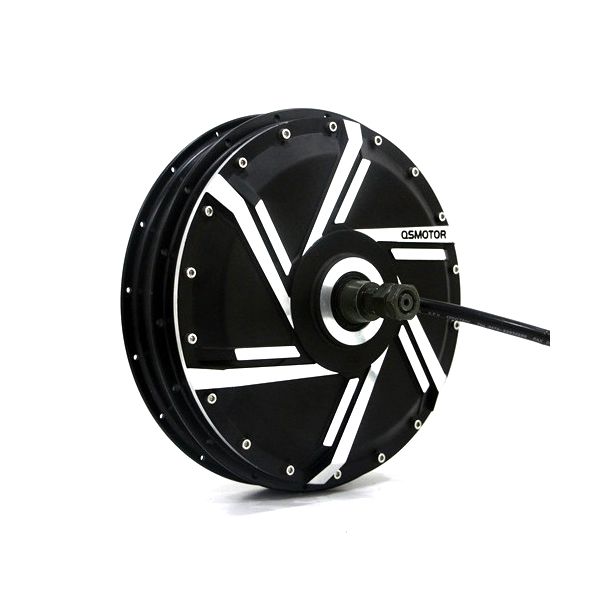

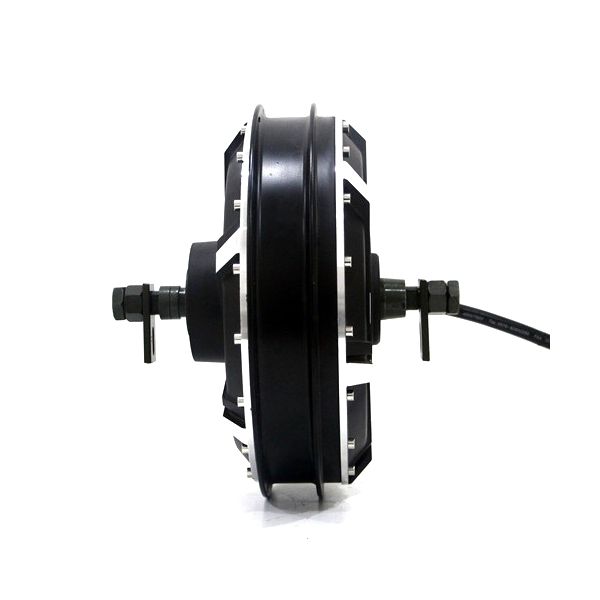

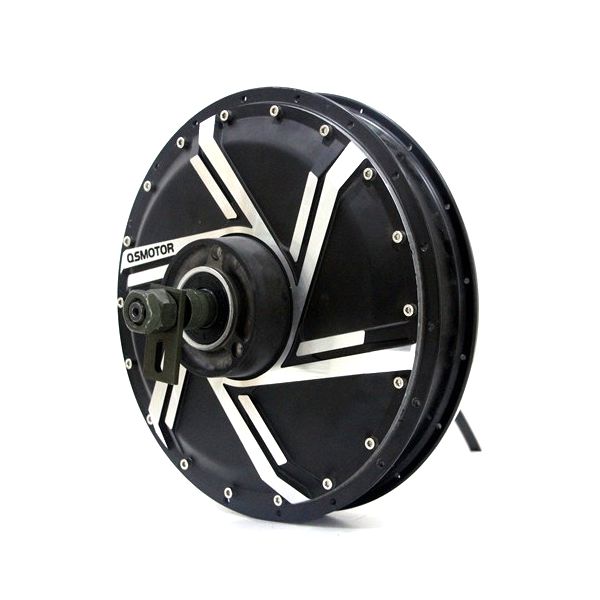

273 E-bike Spoke Hub Motor(45H) 5000W V2 Type 273 Spoke Hub Motor Designed for electric motorcycle, the rated power can be made,5kw,6kw,7kw or 8kw. Max speed can be customized from 80-120KMPH. Motor Specification: Motor Type: BLDC Hub Motor with Permanent Magnets Motor design: Spoke Motor with Double axle out Spoke Hole: 36pcs*4.2mm Matching Wheel: 17inch-19inch spoke wheel Magnet Height: 45MM of Pole Pairs: 28 pairs Rated Power: 5000W Max Power:7576W(Peak 10000W) Rated Voltage: 72V( 60V-144V Can be optional) Speed: 100km/h (30-100km/h can be customized) Max No-load RPM:1243RPM Max Torque: 200N.M Max Efficiency: 88% Continious current:81A Max current:118A ,Peak 170A Brake type: Disc brake Rear Fock width for installation: 200mm Winding Core material: Aluminium Cross Section of Phase wire: 16 mm2 Hall sensor phasing angle: 120 degree Temperature Sensor: Optional Working Temperature: 70 degree, Peak 120 degree Waterproof Grade: IP54 W./ G..W. : 21kgs / 22kgs Package Size: 44*43*34CM
