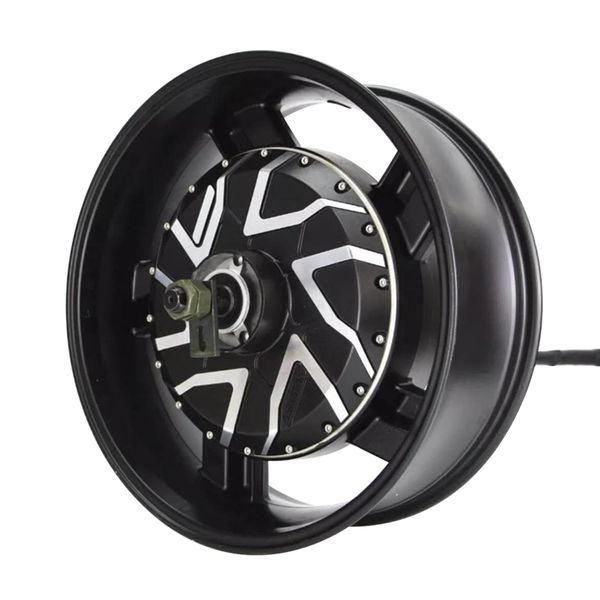

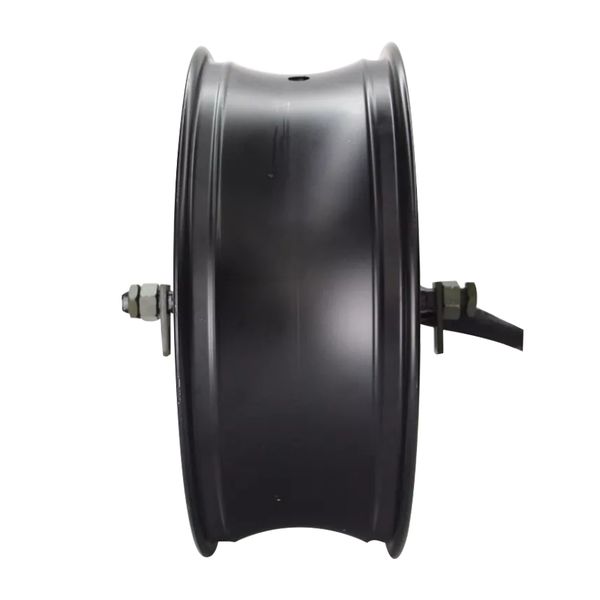

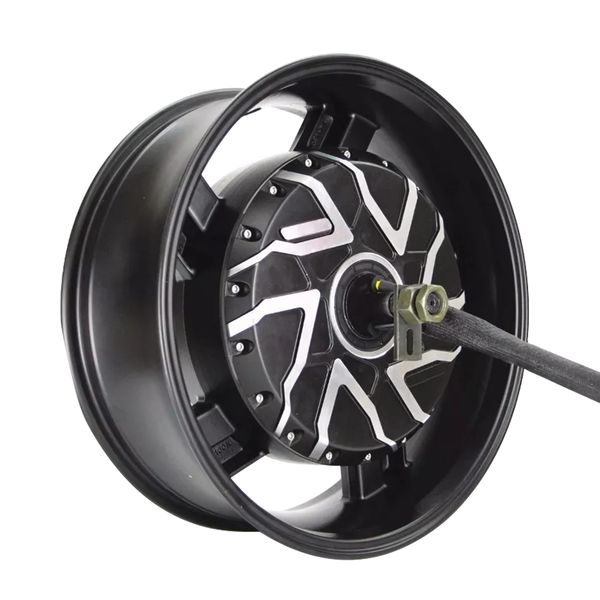

QSMOTOR 12000W 17inch In-Wheel Hub Motor with 6.0×17 Rim
1. Motor Configuration a. 25mm2 Motor phas wires b. Double Hall sensor wires(One is for replace) c. Brake Disc on the motor(Please indicate if you want it) d. Motor always NOT attached Temperature Sensor,if you need,please Indicate in the order 2. Motor Speed Choice The motor can be customzied from 70kmph-130kmph under different voltage as 72V,84V,96V ,120V,144V Please Indicate what speed and Voltage you need in the order 3. Main Tech Data of The Motor Rated power:10KW or 12KW Wheel size: 6.0×17 Matching tire:180/70-17 to 220/70-17 Magnet Height: 70mm Number of Poles: 16pairs Max. Speed: 140kmph Required rear fork width: 230mm Tempreture Sensor:KTY83/122 Brake type:Disc brake Water proof grade:IP54 qs motor
