16inch 30000W In-Wheel Hub Motor(40H) V3 for Electric Motorcycle

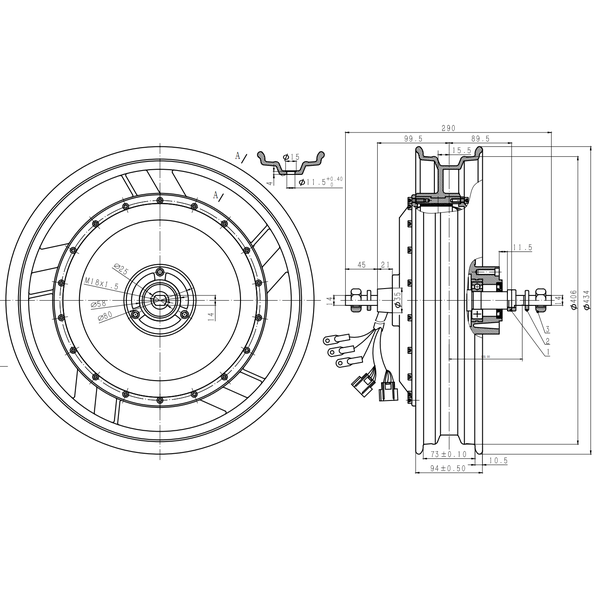

16inch 273 E-Scooter In-Wheel Hub Motor(40H) 3000W V3 Type   16inch Hub Motor specially designed for electric scooters and electric motorcycle, the rated power can be made 2kw,3kw,4kw,5kw,6kw,7kw or 8kw. Max speed can be customized from 30-120KMPH.   Motor Specification:   Motor Type: BLDC Hub Motor with Permanent Magnets Motor design: Double axle out with 16inch Aluminium rim Rim size:3.0×16 Matching Tire: 110/90-16 Magnet Height: 40MM of Pole Pairs: 16 pairs Rated Power: 3000W Max Power:4600W Peak 6000W Rated Voltage: 72V( 48-144V Can be optional) Speed: 70km/h (30-80km/h can be customized) Max No-load RPM:900RPM Max Torque: 175N.M Max Efficiency: 90% Continious current:50A Max current:100A Brake type: Disc brake Rear Fork width for installation: 200mm Winding Core material: Aluminium Cross Section of Phase wire: 16 mm2 Hall sensor phasing angle: 120 degree Temperature Sensor: Optional Working Temperature: 70 degree, Peak 120 degree Waterproof Grade: IP54 W./ G..W. : 21kgs / 22kgs Package Size: 58*58*40CM Motor Drawing
