16inch 2000W In-Wheel Hub Motor(28H) V3 Type for Electric Motorcycle

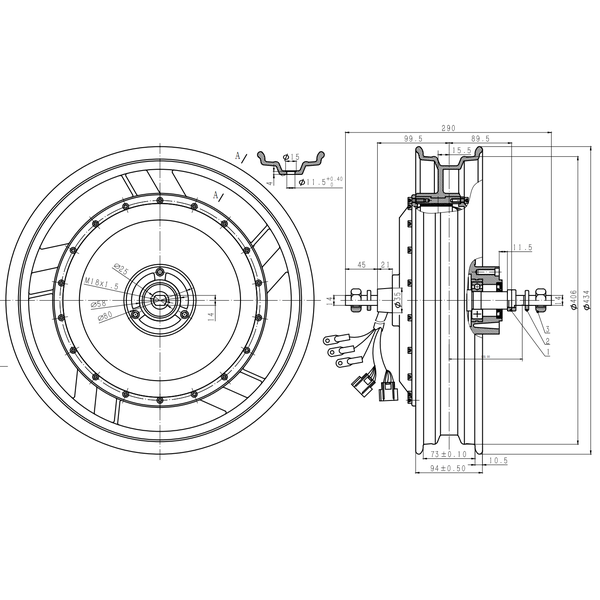

16inch 273 E-Scooter In-Wheel Hub Motor(28H) 2000W V3 Type   16inch Hub Motor specially designed for electric motorcycle, the rated power can be made 2kw,3kw,4kw,5kw,6kw,7kw or 8kw. Max speed can be customized from 30-120KMPH.   Motor Specification:   Motor Type: BLDC Hub Motor with Permanent Magnets Motor design: Double axle out with 16inch Aluminium rim Rim size:3.0×16 Matching Tire: 110/80-16 Magnet Height: 28MM of Pole Pairs: 16 pairs Rated Power: 2000W Max Power:2600W Peak 4000W Rated Voltage: 48V( 48-96V Can be optional) Speed: 65km/h (30-70km/h can be customized) Max No-load RPM: 700RPM Max Torque: 120N.M Max Efficiency: 90% Continious current:48A Max current:65A Brake type: Disc brake Rear Fork width for installation: 200mm Winding Core material: Aluminium Cross Section of Phase wire: 10 mm2 Hall sensor phasing angle: 120 degree Temperature Sensor: Optional Working Temperature: 70 degree, Peak 120 degree Waterproof Grade: IP54 W./ G..W. : 23kgs / 24kgs Package Size: 58*58*40CM   Motor Drawing as follows,
