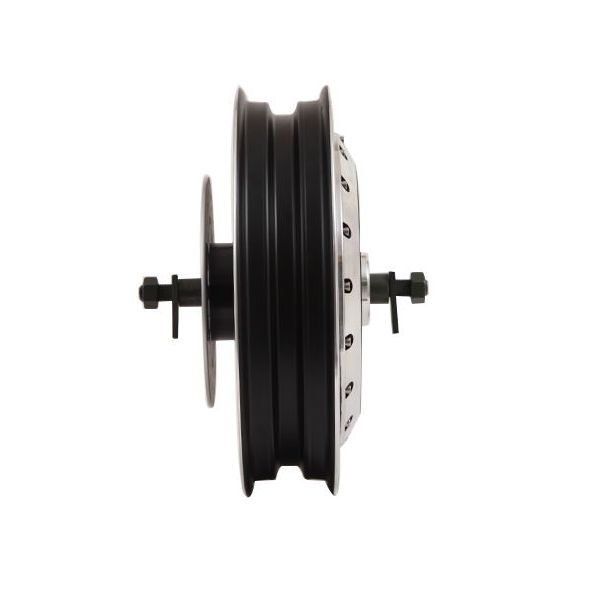

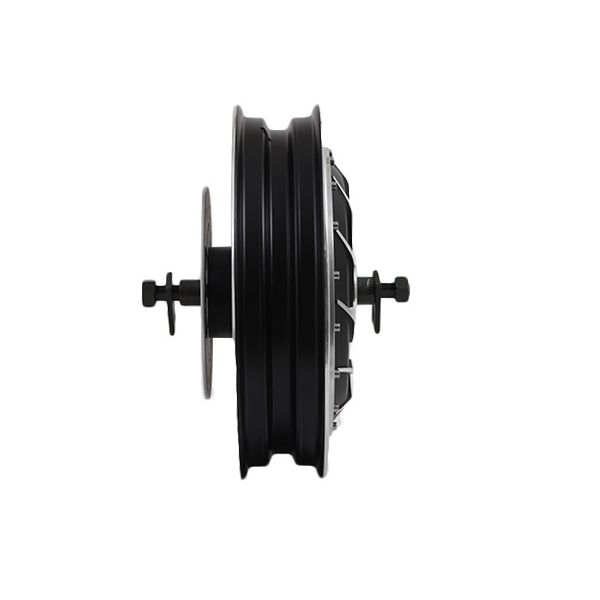

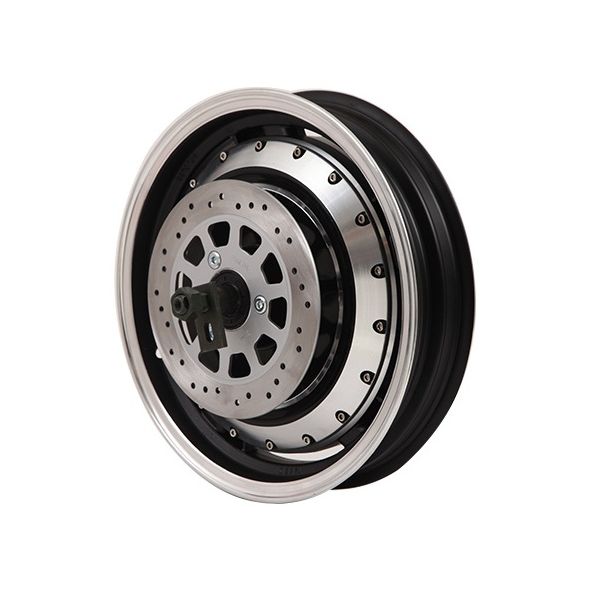

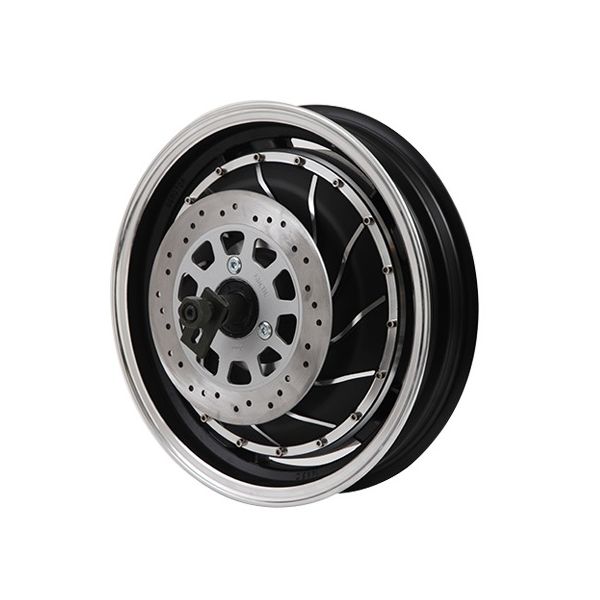

14inch 8000W In-Wheel Hub Motor(50H) V3 for Electric Motorcycle

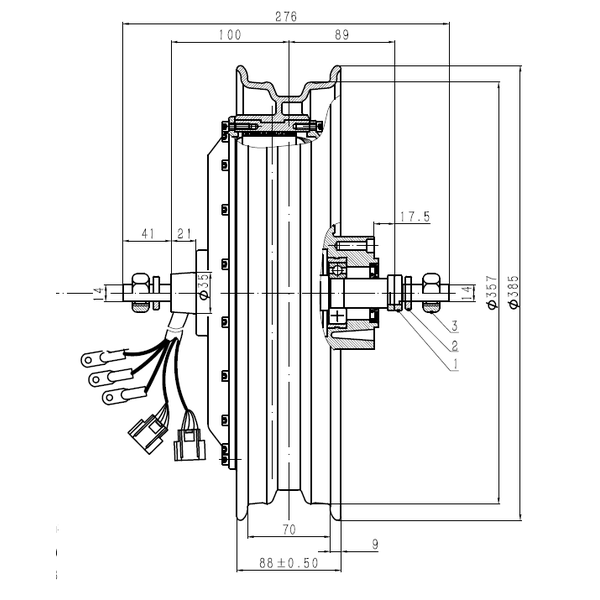

14inch 273 E-Scooter In-Wheel Hub Motor(50H) 8000W V3Type   14inch Hub Motor specially designed for electric scooters and electric motorcycle, the rated power can be made 2kw,3kw,4kw,5kw,6kw,7kw or 8kw. Max speed can be customized from 30-120KMPH.   Motor Specification:   Motor Type: BLDC Hub Motor with Permanent Magnets Motor design: Double axle out with 14inch Aluminium rim Rim size:2.75×14, 2.15×14 Matching Tire: 110/80-14,90/90-14 Magnet Height: 50MM Lamination thickness:0.35mm of Pole Pairs: 16 pairs Rated Power: 8000W Max Power:11280W(Peak 14000W) Rated Voltage: 72V( 72-144V Can be optional) Speed: 120km/h (30-115km/h can be customized) Max No-load RPM:1400RPM Max Torque: 210N.M Max Efficiency: 90% Continious current:130A Max current:190A ,Peak 260A Brake type: Disc brake Rear Fork width for installation: 200mm Winding Core material: Aluminium Cross Section of Phase wire: 16 mm2 Hall sensor phasing angle: 120 degree Temperature Sensor: Optional Working Temperature: 70 degree, Peak 120 degree Waterproof Grade: IP54 W./ G..W. : 22kgs / 23kgs Package Size: 44*43*34CM Motor drawing:
