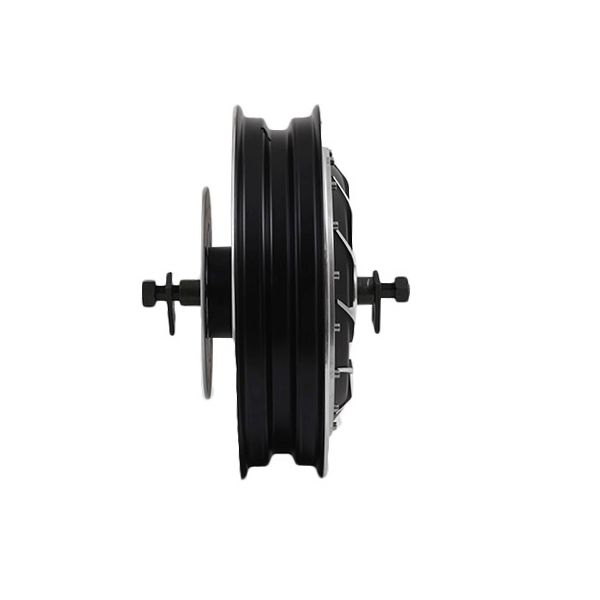

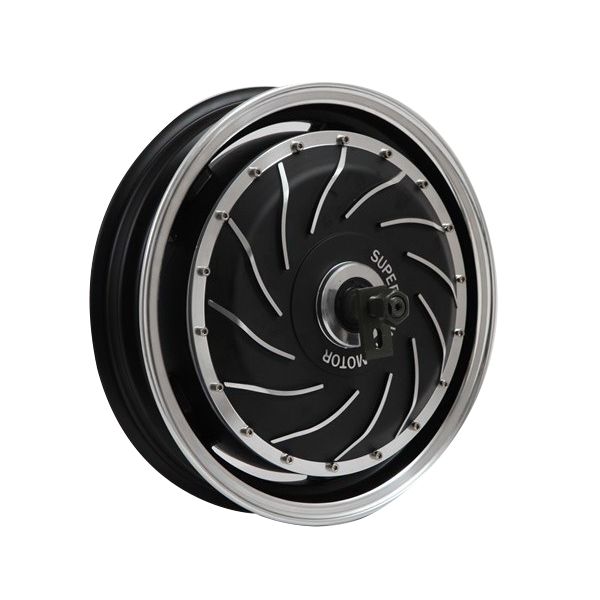

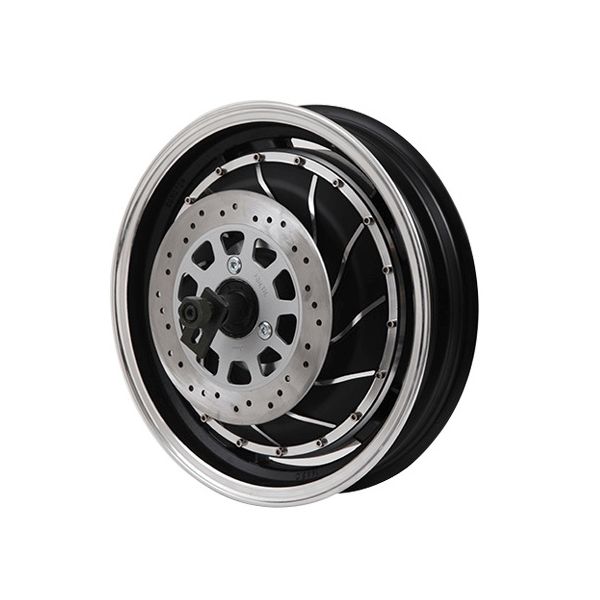

14inch 7000W In-Wheel Hub Motor(40H) V2 for Electric Motorcycle

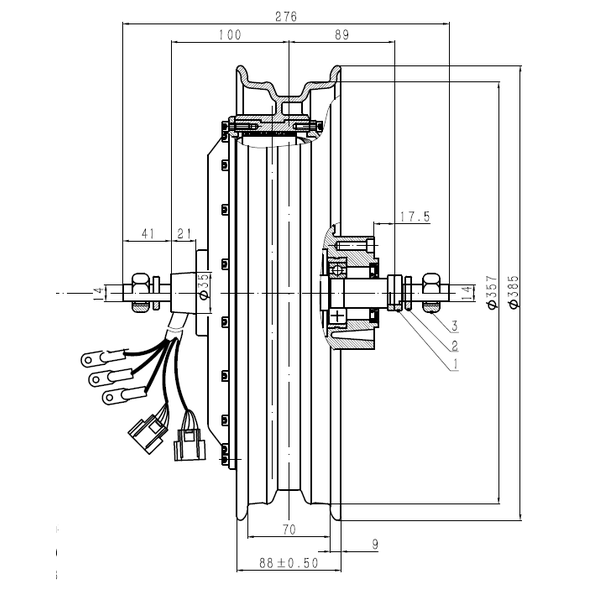

  14inch 273 E-Scooter In-Wheel Hub Motor(50H) 7000W V2 Type   14inch Hub Motor specially designed for electric scooters and electric motorcycle, the rated power can be made 2kw,3kw,4kw,5kw,6kw,7kw or 8kw. Max speed can be customized from 30-120KMPH.   Motor Specification:   Motor Type: BLDC Hub Motor with Permanent Magnets Motor design: Double axle out with 14inch Aluminium rim Rim size:2.75×14, 2.15×14 Matching Tire: 110/80-14,90/90-14 of Pole Pairs: 28 pairs Rated Power: 7000W Max Power:8600W(Peak 14000W) Rated Voltage: 72V( 72-144V Can be optional) Speed: 115km/h (30-115km/h can be customized) Max No-load RPM:1440RPM Max Torque: 200N.M Max Efficiency: 86% Continious current:114A Max current:140A ,Peak 240A Brake type: Disc brake Rear Fork width for installation: 200mm Winding Core material: Aluminium Cross Section of Phase wire: 16 mm2 Hall sensor phasing angle: 120 degree Temperature Sensor: Optional Working Temperature: 70 degree, Peak 120 degree Waterproof Grade: IP54 W./ G..W. : 22kgs / 23kgs Package Size: 44*43*34CM   Motor drawing as follows,
